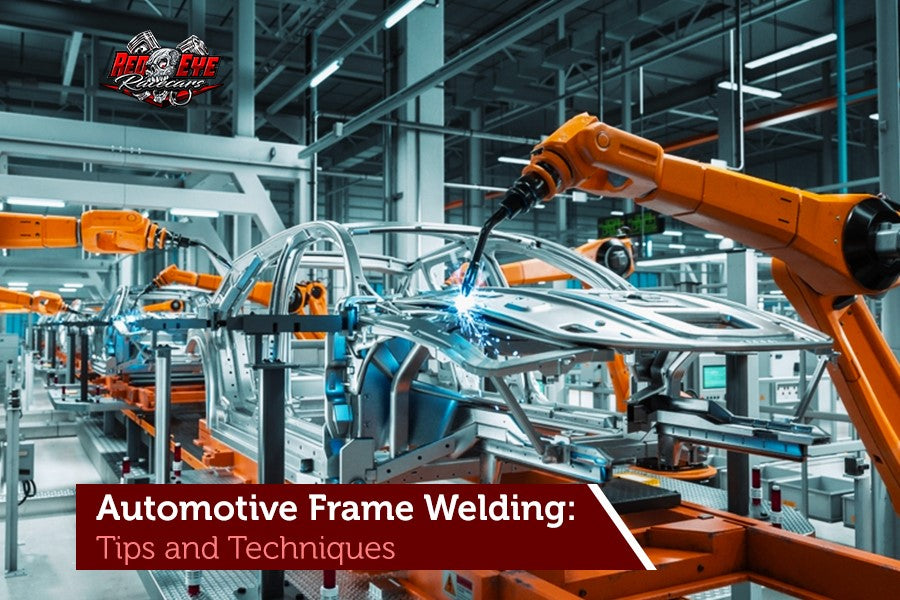

Automotive Frame Welding: Tips and Techniques

Between power, performance, and strength, the frame stands as the silent backbone of the automotive world. It bears the weight of innovation and engineering expertise. Automotive frame welding is pivotal for the vehicle’s structural integrity and safety.

Being in automobile manufacturing for a long time, we have known how the process works and what people look for. You are in the right place if you need information specifically, related to automotive frame welding.

We will discuss automotive frame welding, exploring its significance, techniques, and many more. You get a better idea of how things work with This blog would be a comprehensive guide, whether looking for specific answers or learning about it from scratch.

Significance of Automotive Frame Welding

Welding is like glue for metals, making them stick together forever. Since cars are made mostly of metal, welding is the perfect way to join all the parts that form the body and structure of it.

Welding isn’t just for building new cars but also fixing them. When cars need restorations, welding comes to the rescue. In manufacturing centers, a popular welding method is called resistance spot welding.

But there are top-class welding techniques for cars like MIG, TIG, and Laser Welding. Here are more reasons why is automotive frame welding important-

• Structural Integrity

When we discuss structural integrity in automotive welding frames, it is about ensuring the car’s main structure is robust and dependable. It’s the key to keeping the vehicle safe, sturdy, and ready for whatever challenges the road throws on its way.

The frame is like the skeleton of the car. It supports everything else. If the frame gets damaged for different reasons, it can weaken the structure, making it less reliable and safe. Drivers may experience odd things with the car, like noises or misalignment, if it’s not fixed immediately.

• Safety Enhancements

Automotive frame welding is crucial for safety enhancements. A welded frame provides soundness and resilience, preventing deformation during collisions and impacts. This structural reliability disperses energy more effectively, reducing the risk of injury to occupants.

Moreover, precise welding techniques contribute to the general safety of the race cars by maintaining alignment and rigidity. In the event of a crash, a well-welded frame enhances the effectiveness of safety features like airbags and seat belts. Welding helps repair and strengthen the frame so the car is safe to drive again.

Overall, auto frame welding is necessary for creating a robust and secure foundation. It significantly enhances vehicle safety.

• Enhanced Vehicle Performance

Automotive frame welding plays a pivotal role in enhancing vehicle performance. A well-welded frame ensures the components work together harmoniously, preventing misalignments and distortions.

It contributes to better handling, improved maneuverability, and overall driving experience. By reinforcing the chassis through welding, the vehicle becomes more resilient. It minimizes vibrations and maintains alignment during diverse driving conditions.

This heightened sturdiness optimizes the vehicle’s performance and extends its lifespan, providing drivers with a safer and more enjoyable driving experience.

• Customization and Modification

Another reason automotive frame welding is essential is because of its customization and modification powers. It allows owners to tailor their vehicles to specific preferences.

Welding enables the integration of aftermarket components to the frame securely. It can be through suspension upgrades or custom body modifications. This process facilitates the creation of unique, personalized vehicles with improved performance or distinctive aesthetics.

Welding also supports structural modifications, accommodating alterations like frame extensions or alterations for specialized purposes. In the automotive customization domain, welding serves as the technique for discovering individualized designs and functional enhancements.

It provides a versatile platform for race car owners to express their creativity and achieve desired vehicle characteristics.

• Economic Considerations

Automotive frame welding saves you lots of money. When a car frame gets damaged, welding helps fix it instead of buying a new car. This way, people can keep using their vehicles without spending big amounts of money on replacements.

It’s like giving the car a second chance by repairing its foundation. Welding is a cost-effective solution. It allows individuals and businesses to maintain transportation without breaking the bank.

There is a financial gain for the broader community.

• Standard Compliance

The automotive sector adheres to a set of governmental rules and regulations in the USA. These regulations shape the vehicle design, manufacturing processes of their components, and the inclusion of safety features.

Professional automotive frame welding is vital for ensuring that cars meet the national and state standards set by government authorities. Failing to do so may have consequences.

Welding car frames that follow these rules ensure vehicles are safe to drive. In an unforeseen circumstance, welding repairs must match the safety standards again, no matter the car model.

Cars become reliable, secure, and ready to roll on the roads without worrying about fines from the government.

Welding Application in Auto Repairs and Custom Fabrications

Welding is significant in many industries, especially in building cars and fixing them at reputed auto body shops. When we talk about cars, perfect welding is critical because it makes them safer, more reliable, and better looking.

Imagine someone who fixes car bodies using welding- they have different ways and tools for welding. The technique is used to do various jobs. Whether a car has been in a crash or just got old, welding is a handy skill to fix it and make it look and work better. Hence, welding makes them strong, safe, and ready to hit the road again!

Here are some of the welding applications you might want to know-

• Frame or Fender Welding

When cars get damaged, especially in accidents, the metal parts like the frame or fender can get bent or twisted. An auto body technician needs to fix this problem as soon as possible.

What do experts do? They cut out the bent metal and put in a fresh, new piece. They use a special welding technique to ensure it stays in place and the car becomes normal again. Imagine a strong adhesive made of melted metal to attach the new piece securely. It is how this process works.

So, frame or fender welding is similar to giving a car a new bone or armor, making it strong and ready to roll once more!

• Exhaust Applications

Do you know the noise that a car makes? It comes from the exhaust system. It can get all rusty and sometimes develop holes over time because of conditions like age, moisture, and usage. After taking the car to an auto body technician, when they see a hole in the exhaust pipe, they don’t just let it be.

Instead, the professionals cut out the damaged part, use clamps to hold everything together, and then do a special welding procedure. It’s similar to fixing a hole in a bucket by welding a strong patch over it.

We can say exhaust applications in welding provide a quiet and healthy breath to the car once again!

• Wheels Application

Imagine driving on a bumpy road with numerous potholes- that can be tough on a car’s wheels. Sometimes, the metal frame of the wheel can get cracked or damaged.

A skilled welder sees a cracked wheel and uses a special kind of welding called TIG (Tungsten Inert Gas) welding, to carefully fix it up.

It fixes the cracks and makes the wheel strong and ready to roll smoothly again. Wheels application in welding gives the car wheels a magical repair to keep them spinning.

• After-Market Parts

After-market parts and welding go hand in hand when you want to give the car a personal touch or boost its performance via special parts. You tailor the welding according to the requirement perfectly.

You can choose the customized parts made by different companies instead of regular factory-made parts. This upgrade or customization is more reliable for the vehicle.

What are the Common Signs of a Damaged Car Frame?

Detecting a damaged car frame is crucial for its protection and optimal performance. Despite people ignoring it, various signs indicate frame issues. Being aware of these signals helps drivers address problems promptly.

One common indicator is uneven tire wear, impacting road grip and necessitating frame repairs for secure driving. Let us look at the other signs-

• Uneven Tire Wear

Uneven tire wear is a clear sign of a potentially damaged car frame. A damaged frame can cause suspension and alignment problems. It makes it challenging for the tires to grip the road properly.

It becomes especially risky in rainy or snowy conditions. If regular tire rotations don’t solve the issue, it likely indicates a damaged frame.

Proper frame repair and tire rotation are crucial for safe driving in all weather.

• Unusual Noises

Are you hearing peculiar noises from your car? You need to get it checked immediately. Unusual noises in your car, such as clunks, creaks, or rattles, can be signs of a damaged frame. They may be sounds that might make their foundation weak.

A damaged car frame can lead to components rubbing or moving in ways they shouldn’t, causing these unusual sounds. For example, if you hear a persistent clunking noise when driving over bumps, it could indicate a problem with the frame.

Promptly addressing these noises and inspecting the frame can prevent further damage and ensure a safer driving experience. Let professional car welders handle it smoothly.

• Poor Car Alignment

Have you noticed your car not driving straight? A clear sign of a damaged car frame is poor alignment. It is when a car doesn’t drive straight even when you’re holding the steering wheel steady.

A damaged car frame can cause misalignments, affecting how your car performs. If you notice your steering wheel is off-center or pulls to one side while driving, it’s an indication of frame damage.

Fixing the frame and getting a proper alignment is crucial for smoother, safer driving.

• Unusual Shaking of the Car

If your car is shaking unusually, it might be because of a damaged car frame. Shaking may also mean having a more bumpy ride than usual. For instance, if you notice persistent vibration, especially at higher speeds or during certain driving conditions, it could indicate frame issues. It is best to take the car for servicing.

Think of your car like a smooth-riding elevator; any unexpected jolts during the ride would be unsafe. An impaired frame can lead to instability, causing the entire vehicle to shake.

This shaking affects the comfort and also compromises your control over the vehicle. So, promptly addressing and repairing any frame-related problems would be wise.

• Bent Frame

Another direct sign of a damaged car frame is if it’s visibly bent. Your car’s frame is its backbone; if it’s bent, the whole structure is at threat. An example could be noticing an asymmetry in the distance between the wheels on one side compared to the other.

This misalignment is a visual cue of a bent frame. It’s crucial to address a bent frame promptly, as it affects the overall stability and safety of the vehicle. Repairing or replacing the bent frame is essential to ensure the proper function of the car and avoid further complications.

• Poor Wheel Tracking

Poor wheel tracking is a common sign of a damaged car frame. Visualize your car’s wheels as a team working together; if they’re not tracking properly, it’s like a team that’s not in sync. A damaged frame can disrupt the alignment of the wheels, causing them to point in different directions.

For instance, if you notice your steering wheel is off-center, or the car pulls to one side, even this suggests poor wheel tracking due to frame issues.

Addressing this promptly is essential for maintaining control, preventing uneven tire wear, and assuring a secure driving experience.

• Lower Fuel Economy

A damaged car frame can lead to lower fuel economy, meaning your car could use more gas than it should. If your car is not in good shape, it will become difficult to drive.

A damaged frame can make the engine and other parts work more than necessary, causing increased fuel consumption. For example, if you notice you’re filling up your gas tank more often than usual, it might be a sign of frame problems.

Fixing the frame can help your car run more efficiently, saving you money on fuel in the long run.

Welding Techniques Used in the Automotive Industry

There are several welding techniques, and one needs to understand them carefully if new to this field. Welding is a fundamental process in the automotive industry, contributing to the fabrication of vehicle components and designs.

Various welding techniques are employed to ensure the quality, strength, and safety of automotive assemblies. The primary welding processes for automotive parts is Resistance Spot Welding (RSW), complemented by other methods for specific applications.

Here is an overview of the key welding techniques used in the automotive sector-

• Gas Metal Arc Welding (MIG/GMAW)

People also know it as Metal Inert Gas (MIG), which uses shielding gas with electrodes. It heats the metals needed to join. Such a technique requires a continual direct current power source and constant voltage.

Being one of the most common auto body welder methods, it includes huge bore pipes and plates. It is suitable for various materials, including steel and aluminum, offering versatility in automotive frame fabrication.

• Gas Tungsten Arc Welding (GTAW/TIG)

The primary application of this technique involves joining thick sections of stainless steel or non-ferrous metals. Known as Tungsten Inert Gas (TIG) welding, it uses a stationary consumable tungsten electrode to generate the weld. In comparison to Stick, MIG, or Flux Cored Arc Welding, this arc-welding process is notably more time-intensive.

TIG welding provides excellent control, precision, and clean results. Historically, the drawback of TIG welding has been the equipment cost; however, contemporary high-quality units are now available at affordable prices.

• Resistance Spot Welding

Resistance Spot Welding, or RSW involves applying pressure and passing an electric current through metal sheets at specific points, creating localized welds. The automotive assembly lines use this one for joining two or more sheet metal components, such as frame sections and body panels.

It provides quick and efficient welds and is ideal for high-volume production. Note that it also produces sturdy and reliable joints.

• Projection Welding

Projection welding is a variant of resistance welding. It uses pressure and electrical current to unite two or more metal parts. It is specifically engineered to converge at one or more designated points, ensuring maximum contact.

This method improves welding efficiency by needing less energy and yielding greater weld strength.

• Laser Welding

Laser welding is another technique predominantly employed in the aeronautical and automobile industries. The precision of engineering is paramount. This method is particularly favored for applications demanding high accuracy in the execution of engineering works.

Laser welding achieves the melting and joining of metals by using a meticulously focused laser beam, delivering outcomes marked by accuracy and efficiency.

This technology finds extensive application in welding frame components. It has intricate geometries or instances where lessening heat input is critical to maintain the material’s integrity.

• Stick Welding

With this particular type of welding, the welder follows a manual process of stick welding. The stick uses an electric current to form an arc between the stick and the metals for joining purposes.

It is frequently used to build steel structures and is also used in fabrication to join steel and iron. It uses the V-Groove method when welding with a mild steel pipe.

The welder must be able to weld to a level in which their work can pass a destructive type of bend test.

Shielded metal arc welding is commonly used to join carbon steel, alloyed steel, stainless steel, cast iron, and ductile iron. It can also be used for certain non-ferrous metals like nickel and copper. It is rarely used on Aluminum.

• Manual Welding

Manual welding stands out as a traditional yet cost-effective method employed for projects with lower production volumes and assembly tooling needs. This technique, in contrast to more automated processes, demands minimal programming and boasts a shorter start-up time.

Instead of relying on complicated automation, manual welding leverages expertise and quality assurance.

This approach proves economical for specific applications. It ensures precision and craftsmanship coming from the skilled hands of seasoned professionals.

• Robotic Welding

We have touched the 4th industrial revolution in the 21st century. The age of artificial intelligence, gene segregation, and advanced robotics is here. So, how can we miss robotic welding? It is a relatively new process of welder for car frames. One has a modern, tech-driven method used for welding tasks in automobile plants.

This approach comes with several advantages. It saves money over time, improves the quality and consistency of large projects, and speeds up the overall process. Many welding repair shops are adopting this method around the world. Get ready for further changes ahead!

Tips for Welding Automotive Sheet Metals

Do you plan to weld your old vehicle? Although we’d advise you to go to a professional auto body welder, here are a few tips to weld it on your own. You can note this tip to check if a professional is doing the work properly or not. Here you go-

• Ensure Safety First

When starting the welding frame repair, focus on security by wearing all compulsory protective gear. It includes gloves, goggles, and a safety hood. One has to protect their eyes and skin from any potential harm, no matter how small.

• Clean The Surface

A clean welding surface makes a lot of difference. During automotive frame welding, maintain a clean work surface to ensure the integrity of your welds. Use a brush to remove dirt and grease before the start of the welding process to avoid issues with the final product.

• Adjust Power Settings

Because car sheet metals are thin, using a high-power setting on your welder may create holes. Start with lower power settings to prevent this and adjust as needed.

• Select the Right Filler Materials

Choose a filler metal that matches the characteristics of your car part. The filler should be thinner than the metal sheet covering, reducing the risk of corrosion and welding problems.

• Use Skip Welding Technique

To prevent warping due to uneven heat distribution, use the skip welding method. It involves creating a sequence of short welds at key points on the thin sheet metal. You allow it to cool before welding the skipped spots.

• Opt for Small Diameter Wire

Use the smallest diameter solid wire electrodes available for better control. Smaller wires require less energy to melt, reducing the risk of overheating. We recommend a 0.023 or 0.024-inch wire for light gauge sheets, while a 0.030-inch wire may be preferable for heavier sheets.

• Utilize Backing/Chill Bars

Keep the heat-affected area in contact with a backing or chilled bar to speed up heat dissipation. Simply strap a metal bar, such as copper or aluminum, to your workpiece for efficient heat transfer.

Automotive Frame Welding- The Cost Behind It

Your car’s frame keeps everything sturdy and in place. If your car is in an accident- the radiator pushed into the engine and the fenders all bent- your frame might take a hit. Fixing it can cost a good amount of money, and you’ll need a skilled welder or dependable automotive welding shops to do the job right.

Repairing a cracked car frame is expensive, up to $10,000, depending on how bad it is. If it’s a smaller issue, like minor damage, it could be between $500 and $1,000. A professional welder usually charges around $18 per hour.

Lots of factors determine the costs. But here’s our thought- you might debate whether it’s worth fixing or getting a new car is a better idea. Letting go is not easy, however, you also need to look at the long-term return against the repair you do.

Make sure the person fixing your car is experienced, especially about frames. If it’s not done right, the car might end up weaker where it got welded. So, find experts at working with car frames to keep your ride safe and sturdy.
